Multivariate outliers

Posted: Sat Oct 19, 2019 10:43 pm
by Dilara_
How can I detect multivariate outlier in my data set? I want to use Mahalanobis distance but it is not given in jamovi. How can I run it manually?

Re: Multivariate outliers

Posted: Sat Oct 19, 2019 11:37 pm
by jonathon
hi,

perhaps with the rj editor?

https://blog.jamovi.org/2018/07/30/rj.html

kind regards

jonathon

Re: Multivariate outliers

Posted: Tue Oct 22, 2019 8:33 am
by MAgojam
Hi, @Dilara_.

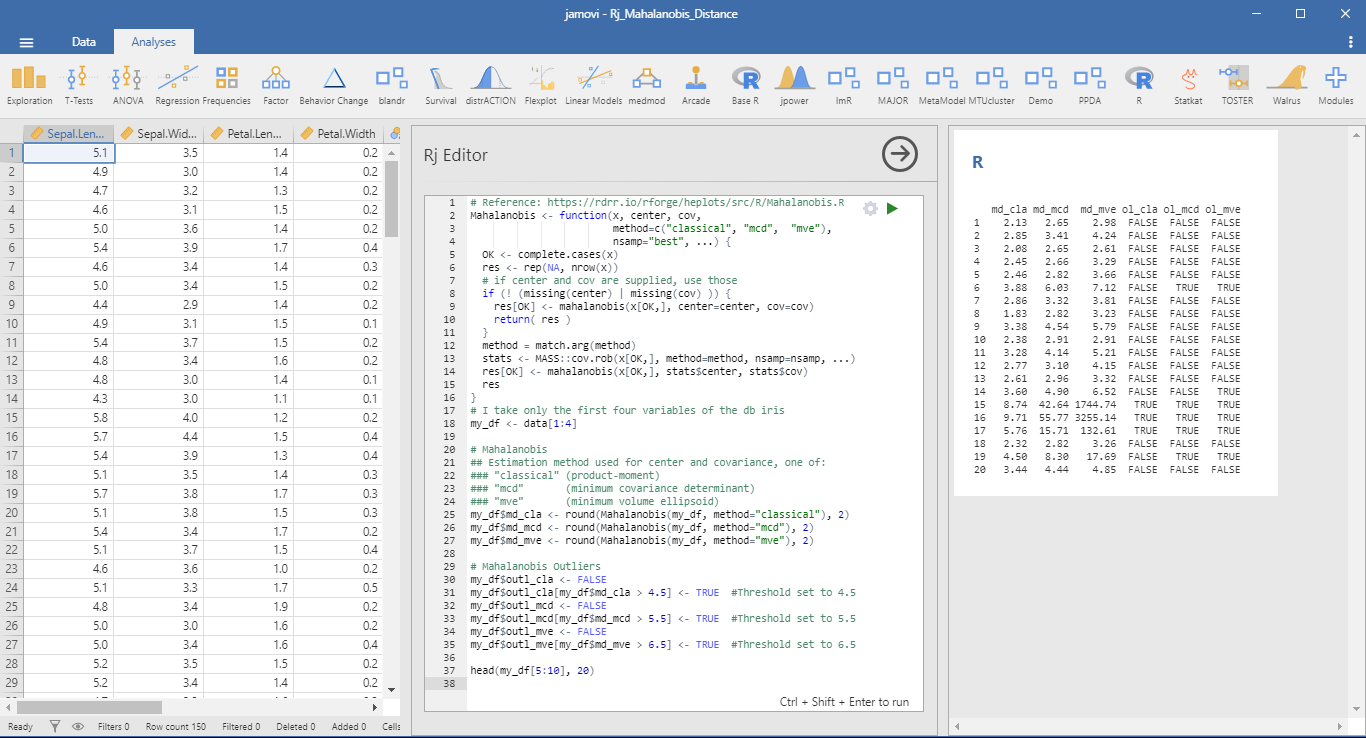

I am attaching a screenshot with a simple example of using the RJ editor (as suggested by Jonathon).
Perhaps the script with the Mahalanobis function can be useful to answer your question?
Cheers.
Maurizio

Re: Multivariate outliers

Posted: Tue Oct 22, 2019 12:32 pm
by Dilara_
I'll try it. Thank you

Re: Multivariate outliers

Posted: Fri Jul 09, 2021 2:57 am
by DeborahA
Hi there! I tried implementing this code but I could not for the life of me get it to work. So instead here's some simplified code that I wrote to achieve this for a student - I thought I might as well share it here.

Code: Select all

library(jmv)
library(dplyr)
library(magrittr)

dat <- select(data, "V1", "V2", "V3", "V4") # select only the variables you want to use

Sx <- cov(dat) # get the covariance matrix

D2 <- mahalanobis(dat, colMeans(dat), Sx) # calculate the Mahalnobis distances on the centred data

# Optionally, make some fancy plots
plot(density(D2, bw = 0.5),
     main="Squared Mahalanobis distances, n=100, p=3") ; rug(D2)
qqplot(qchisq(ppoints(100), df = 3), D2,
       main = expression("Q-Q plot of Mahalanobis" * ~D^2 *
                         " vs. quantiles of" * ~ chi[3]^2))
abline(0, 1, col = 'gray')

# Add the distances to your selected dataset and calculate whether there are outliers greater than 4.5

dat$mahalanobis <-D2
dat$outlier <- FALSE
dat$outlier[dat$mahalanobis > 4.5] <- TRUE

dat
I hope this helps someone!

It would be great to see this implemented in jamovi some time soon, as our Honours students are expected to calculate this.

Best

Deborah.

Re: Multivariate outliers

Posted: Thu Aug 05, 2021 5:44 pm
by Claire1998
Hi there,

I am trying to use the code for RJ editor to calculate MD - I have a large data set with approx 100 variables, is there a way I can number the columns or is there a way to accurately input the desired column number into the code without counting them manually?

Thanks

Re: Multivariate outliers

Posted: Mon Aug 09, 2021 8:01 am
by jonathon
hey,

in R you can refer to columns by name, if that's easier than refering to them by column number.

cheers
